DTS Dolby Digital AC-3 Audio Decoder: Convert Optical and Coaxial Digital Audio to 5.1 Channel Analogue Sound

Transform your digital audio sources into a rich, cinematic surround sound experience with this DTS/Dolby Digital AC-3 audio decoder. This compact converter is designed to decode the digital audio signals from a wide array of modern entertainment devices, including PCs, laptops, PlayStation 3, Xbox 360, high-definition media players, set-top boxes, and Blu-ray DVD players. By processing DTS or Dolby Digital source code, it outputs a genuine 5.1-channel analogue signal, allowing you to harness full surround sound from content originally encoded for it, or upmix standard stereo audio. Its plug-and-play design and strong mobility make it a versatile solution for enhancing audio in homes, schools, concert halls, and home theatre setups.

Features and Technical Specifications

This decoder is built around a core functionality of high-fidelity audio conversion, supported by clear technical specifications for informed setup. It provides the necessary bridge between modern digital audio outputs and traditional or older multi-channel analogue amplifier systems.

Decoding Performance and Audio Quality

The unit utilises global audio decoder chips to accurately decode DTS and Dolby Digital AC-3 source code digital audio signals. It delivers a high signal-to-noise ratio of 120dB for a clean audio output and a resolution of 80dB at 1KHz. The frequency response covers the full audible spectrum from 20Hz to 20KHz with a variance of +/- 0.5dB, ensuring all audio details are preserved. The analogue output level is rated at 2.2V, providing a robust signal to drive your amplifier or powered speakers effectively.

Connectivity and Input Flexibility

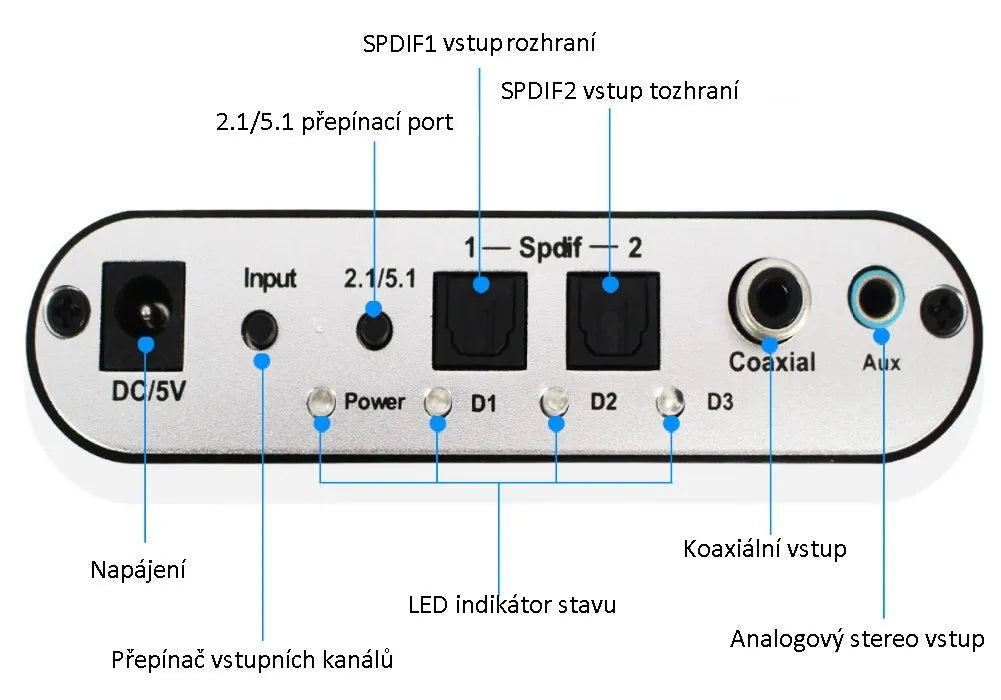

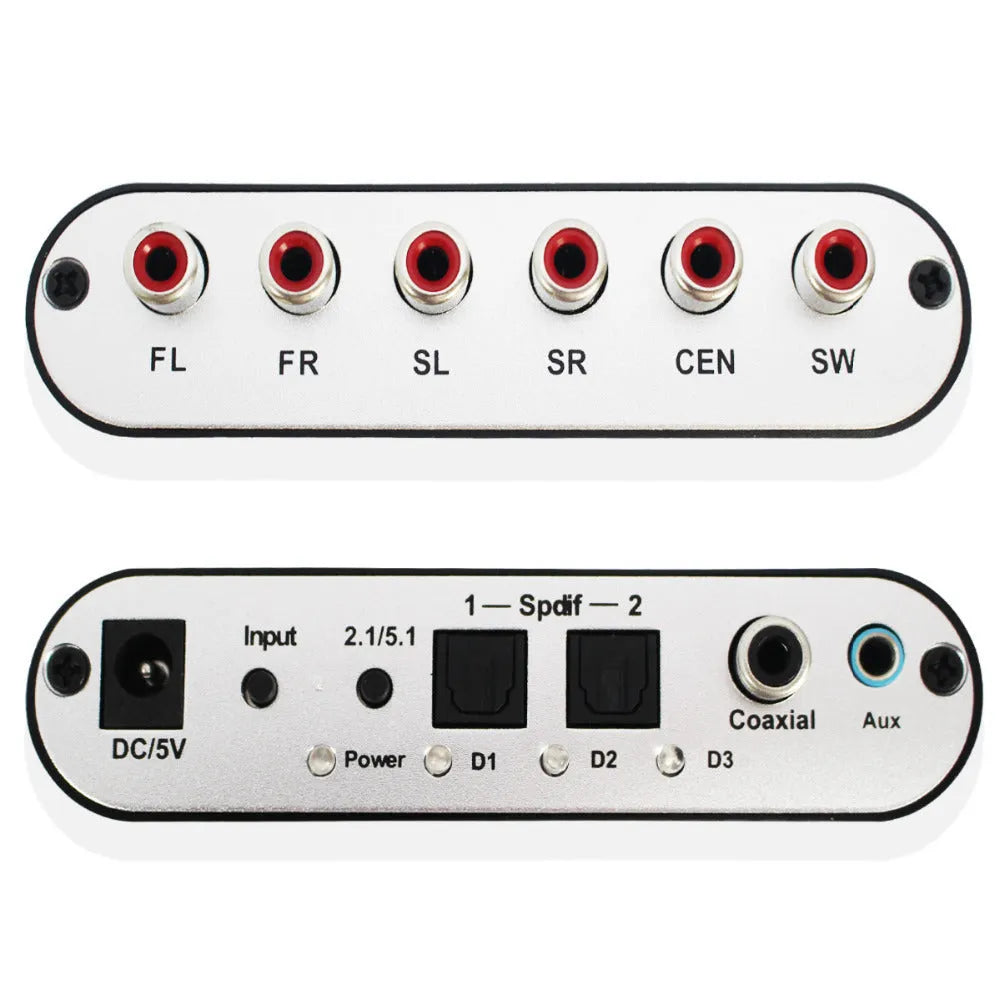

A key advantage is its comprehensive set of input options. It features two SPDIF optical fibre inputs and one coaxial digital input, accommodating the most common digital audio connections from source devices. For legacy or non-digital sources, a standard stereo (R/L) analogue input is also provided. This allows the unit's audio processing chip to convert a standard stereo signal into a simulated 5.1-channel output, expanding its usefulness beyond purely digital sources.

Design, Operation and Compatibility

Designed for practicality and broad application, this decoder combines a user-friendly interface with extensive device compatibility. Its compact form factor ensures it fits easily into any entertainment centre or desktop setup.

Compact Build and Ease of Use

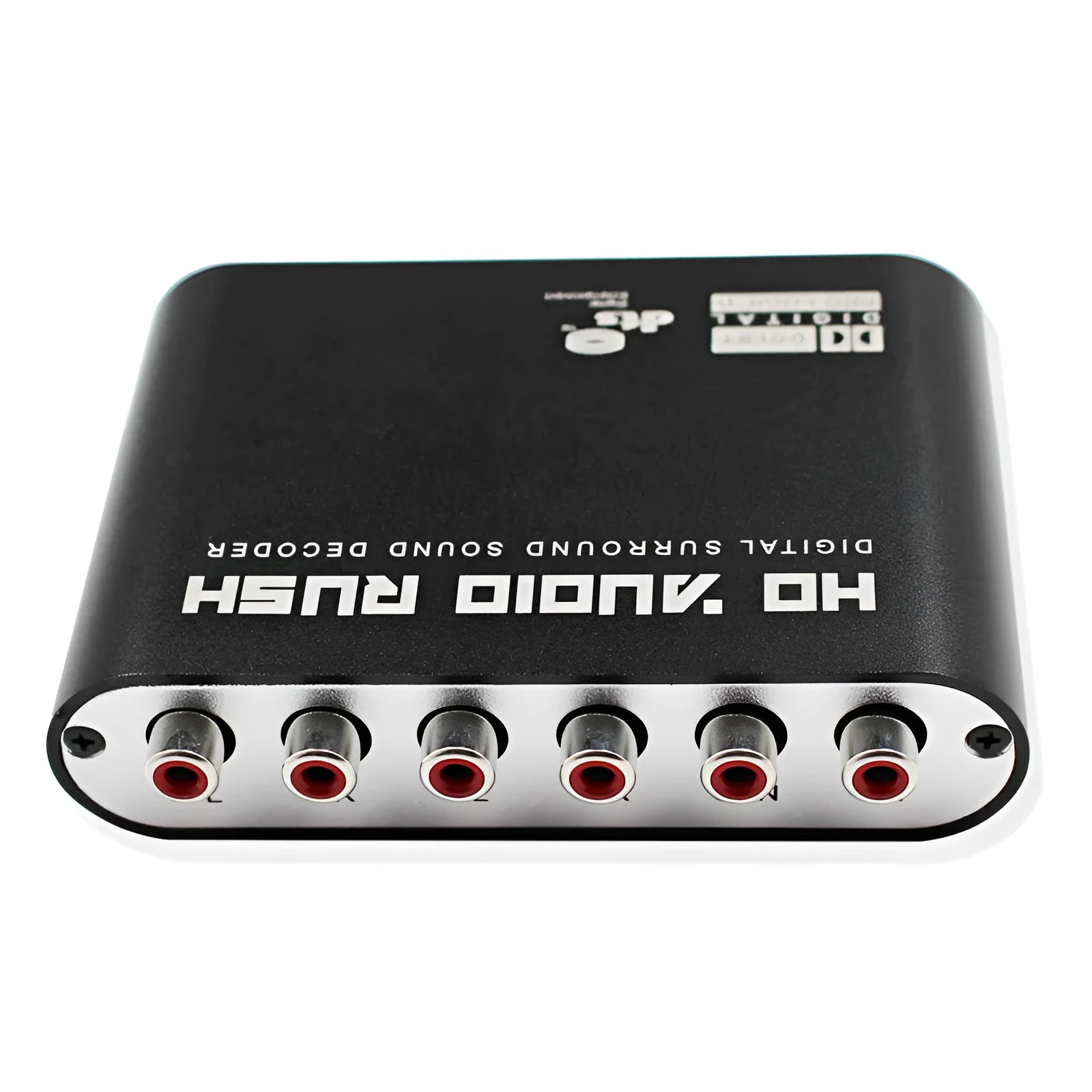

The product features an exquisite and compact design, measuring 105mm x 75mm x 25mm (10.7cm x 8cm x 2.5cm). This small footprint ensures strong mobility and easy placement. Operation is straightforward with a multi-channel one-key switch, enabling convenient and fast switching between stereo and 5.1 channel output modes. The unit also supports remote wake-up and power management functions for added convenience in an integrated system.

Output Configuration and Power

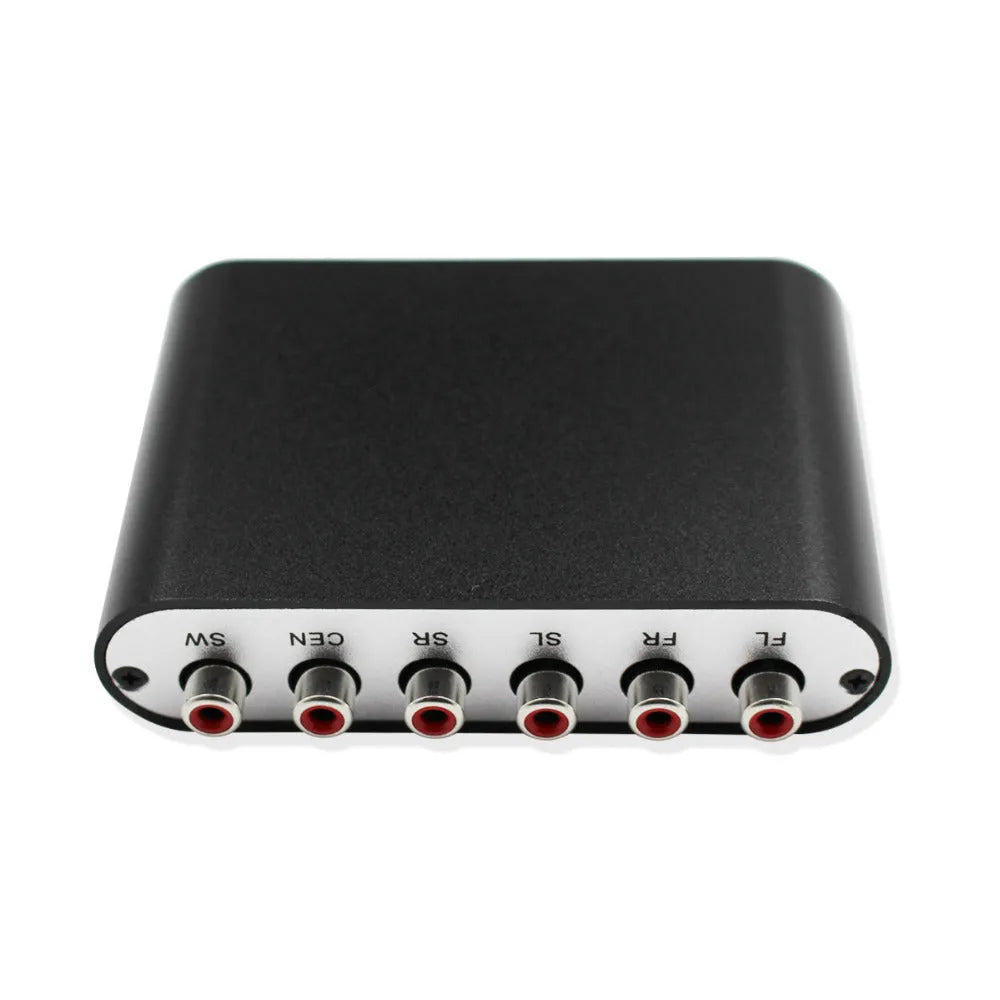

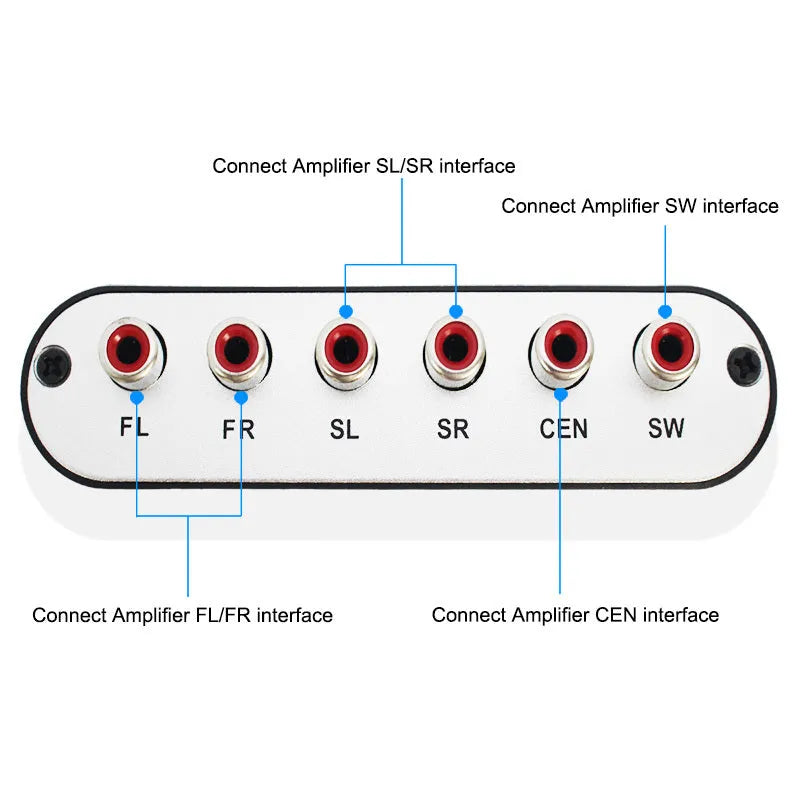

The decoder provides dedicated analogue output terminals for all channels in a standard 5.1 setup: Front Left (FL), Front Right (FR), Centre (CEN), Surround Left (SL), Surround Right (SR), and Subwoofer (SW). A unique feature is the inclusion of a USB 5V power output port. This allows you to conveniently power external 5.1-channel headphones that require a USB power supply, adding to the unit's versatility for personal listening.

Application and System Integration

This audio decoder serves as a crucial link in AV chains where source devices lack analogue multi-channel outputs, enabling older or specific amplifier systems to receive modern surround sound formats.

Home Cinema and Gaming Setups

Its primary use is in home cinema and gaming environments. It is widely applicable for processing the digital signals output by network media players, high-definition video players, Blu-ray and standard DVD players, as well as gaming consoles like the PS3 and Xbox 360. By decoding the Dolby or DTS audio tracks from these sources, it delivers the shocking and immersive effect of a true cinematic or gaming sound field to your existing speaker system.

Professional and Educational Venues

Beyond the home, the decoder's capability to produce expansive sound from a compact unit makes it suitable for schools, squares, and concert halls. It can integrate into presentation or background music systems where a multi-channel audio output from a digital source is required, providing clear and impactful sound distribution.
