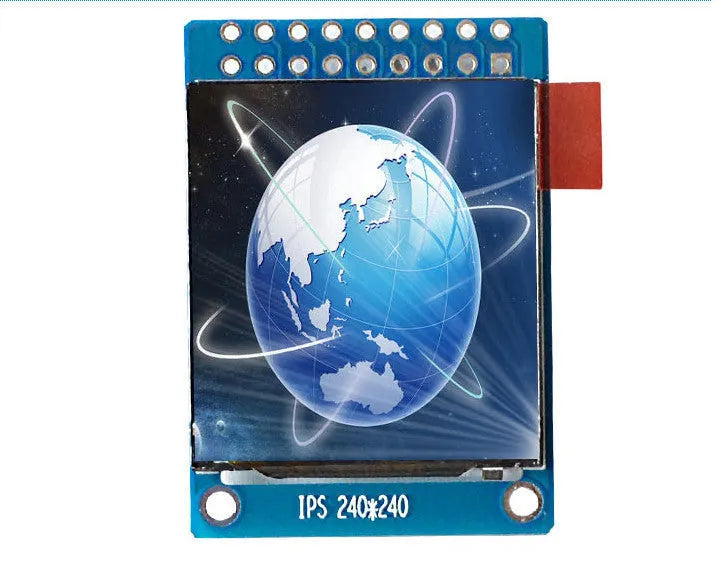

1.3-inch 240x240 IPS LCD Full Colour Display with Adjustable Square Screen and ST7789 Chip

This plug-in display module delivers a high-definition visual output for a wide range of embedded systems, prototyping boards, and custom electronic devices. Its 1.3-inch IPS (In-Plane Switching) colour screen is engineered to produce more vivid and consistent colours across a wider viewing angle compared to standard TFT LCD technology, making it suitable for applications where clarity and colour accuracy are important. The square 240 by 240-pixel resolution provides a balanced canvas for user interfaces, data visualisation, or simple graphics. With support for both 8-bit parallel and 4-wire SPI communication protocols, it offers significant flexibility for integration into different microcontroller architectures, defaulting to the parallel port for straightforward setup. Its robust design allows for operation in environments from -20 to 70 degrees Celsius.

Features and Construction

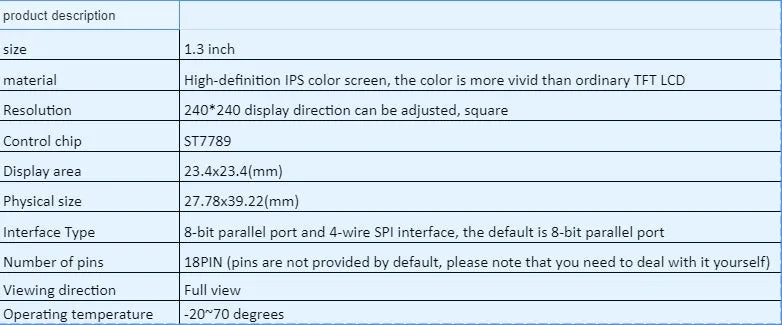

This display is built around key specifications that ensure reliable performance and easy integration for makers and engineers. The focus is on providing a clear, adaptable visual component without unnecessary complexity.

Material and Build

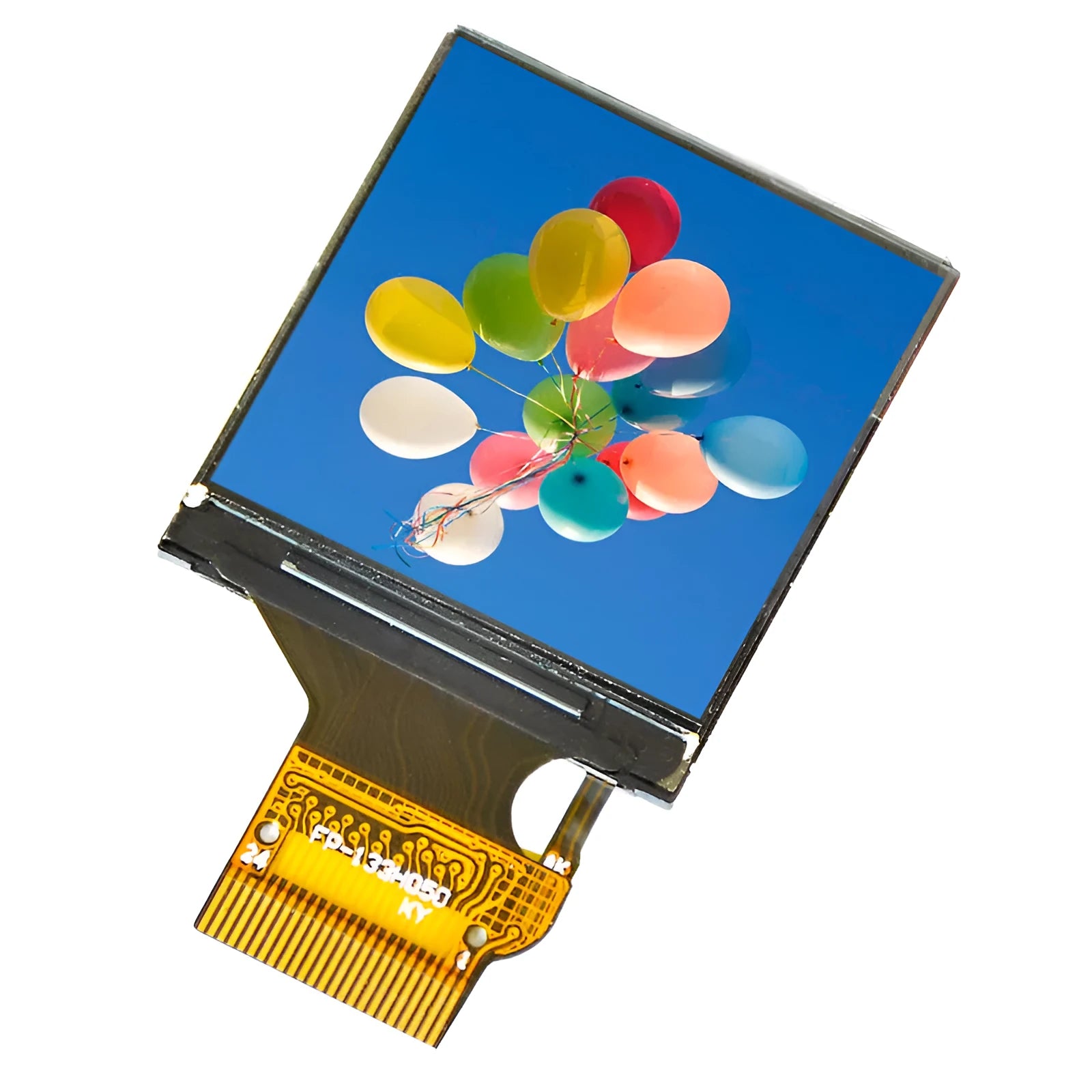

The core component is a high-definition IPS LCD panel. This technology is known for delivering more vivid colour reproduction and superior viewing angles than traditional TFT screens, which can appear washed out when viewed from the side. The module utilises the ST7789 display driver chip, a common and well-supported controller that manages the pixel data and interface communication. The construction is centred on this chip and the IPS panel, housed within a compact footprint.

Size and Practical Fit

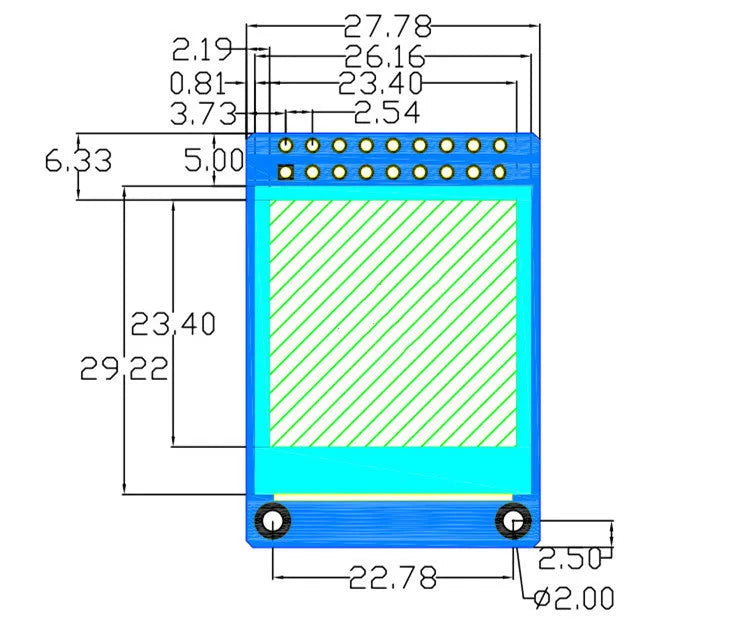

The display's physical dimensions are precisely 27.78 millimetres in width by 39.22 millimetres in height, making it a compact addition to space-constrained projects. Within this frame, the active display area—the part that actually shows the image—measures 23.4mm on each side, resulting in a perfectly square viewing region. This 1.3-inch diagonal screen size paired with a 240x240 resolution is a practical format for showing icons, text, or simple gauges. The 18-pin connection header on the board provides the electrical interface, though users must note that the pins themselves are not included and need to be sourced and soldered separately.

Uses and Placement

With its flexible interfaces and clear display, this module is suited for both hobbyist experiments and more polished professional prototypes. Its specifications guide its ideal applications.

Event or Professional Use

In professional or industrial prototyping environments, this display can serve as a robust human-machine interface (HMI) for monitoring equipment status, displaying sensor data, or providing user feedback. Its ability to operate across a wide temperature range from -20 to 70 degrees Celsius makes it suitable for enclosed control panels, test equipment, or other applications where ambient conditions might fluctuate. The default 8-bit parallel interface allows for fast data transfer, which can be beneficial for updating complex screens or animations in real-time.

Everyday Home Use

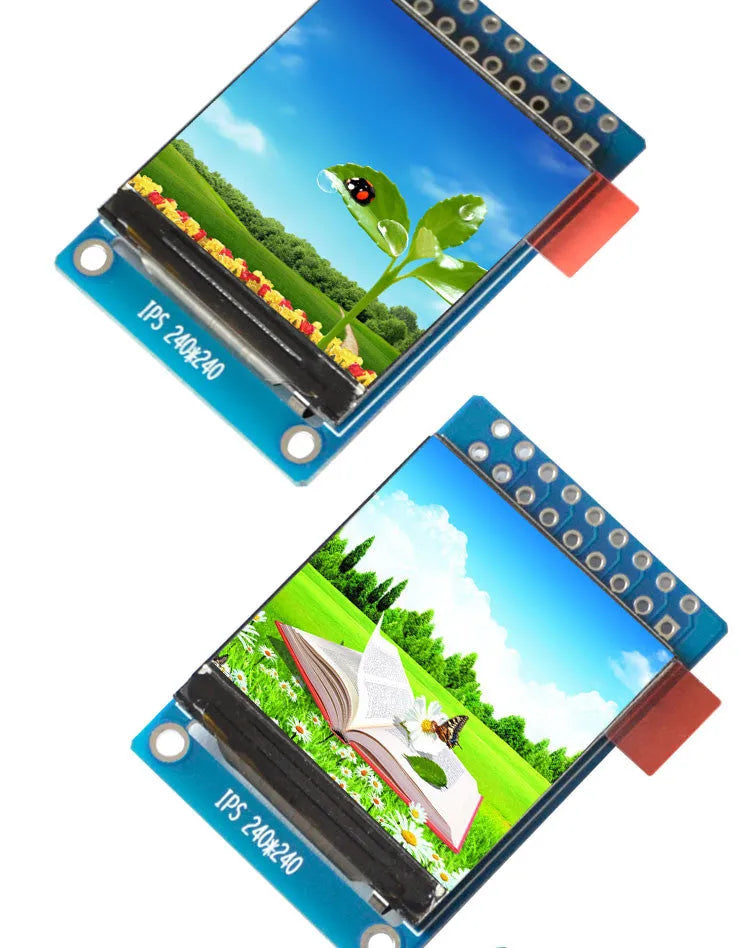

For DIY enthusiasts and makers, this IPS LCD is an excellent choice for custom projects like smart home controllers, retro gaming consoles, wearable tech displays, or weather stations. The 4-wire SPI interface option is particularly useful for projects based on popular microcontrollers like Arduino or Raspberry Pi Pico, as it conserves GPIO pins compared to a parallel connection. The adjustable display direction means the screen can be oriented correctly whether the device is mounted vertically or horizontally, adding to its versatility in custom enclosures.

Benefits and Buying Value

The value of this display module lies in its combination of image quality, integration flexibility, and the practical information provided for informed project planning.

Reuse and Low Maintenance

As a solid-state electronic component with no moving parts, the display module is designed for reliable, long-term use within its specified operating parameters. The provided temperature range gives clear guidance on the environments it can withstand, helping to prevent failure. By clearly stating that pins are not included, it sets accurate expectations, allowing buyers to prepare the necessary connectors and avoid project delays. This transparency supports successful, one-time integration.

Why Choose This Product

Choose this 1.3-inch display for its verified improvement in colour vividness over basic TFT screens, courtesy of the IPS technology. The concrete specifications—the exact physical size, display area, resolution, and interface types—provide all the necessary data to confirm it will fit and function within your specific design. The inclusion of two common interface protocols (parallel and SPI) offers a clear advantage, giving you options based on your microcontroller's capabilities and pin availability. It is a component defined by its measurable facts, allowing for a confident purchase decision grounded in technical compatibility.
