HDMI Extender over Cat-5e/6: 1080P Signal Amplification up to 30 Metres

This HDMI Extender kit provides a practical solution for one of the most common AV installation challenges: transmitting a high-definition signal beyond the standard length of an HDMI cable. By utilising a single, readily available Cat-5e or Cat-6 network cable, it extends 1080P Full HD audio and video over distances of up to 30 metres. This approach offers greater flexibility in cable routing compared to a thick, rigid HDMI cable, making it easier to install under carpets, through conduit, or around room corners. The system is designed for plug-and-play operation, requiring no external power adapters or complex configuration, which simplifies setup for home cinema enthusiasts, conference room managers, and digital signage installers alike.

Features and Construction

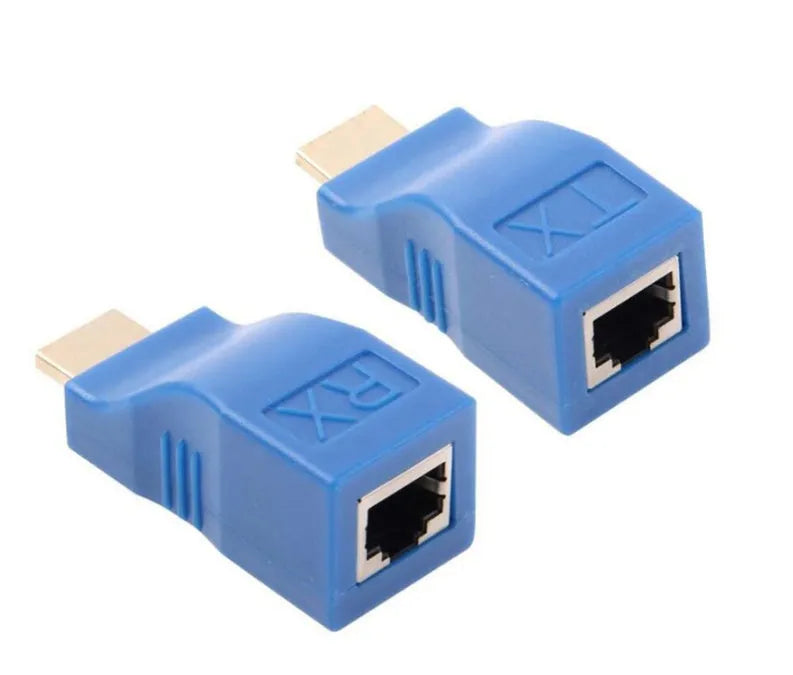

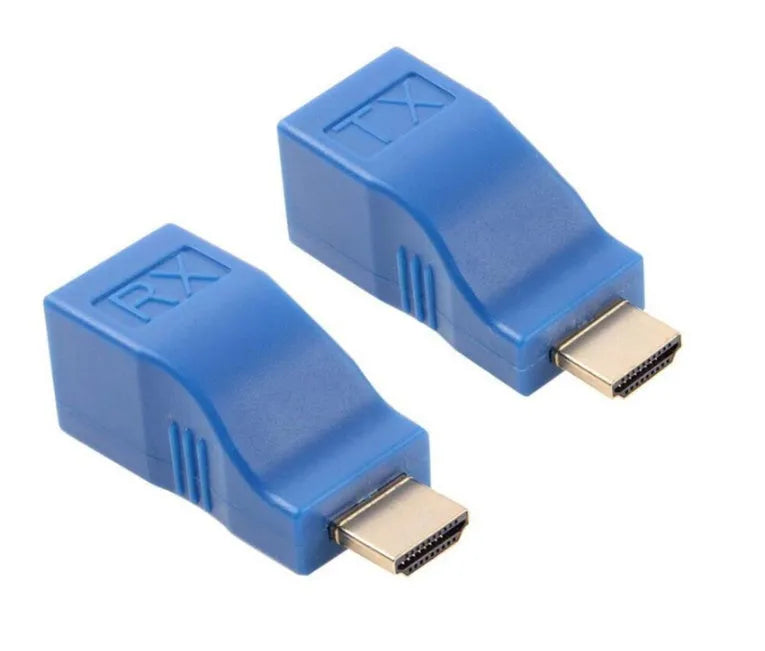

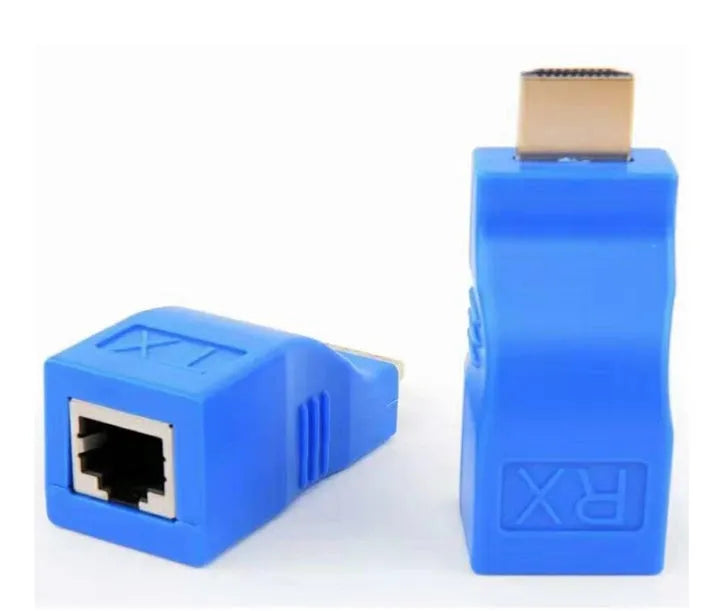

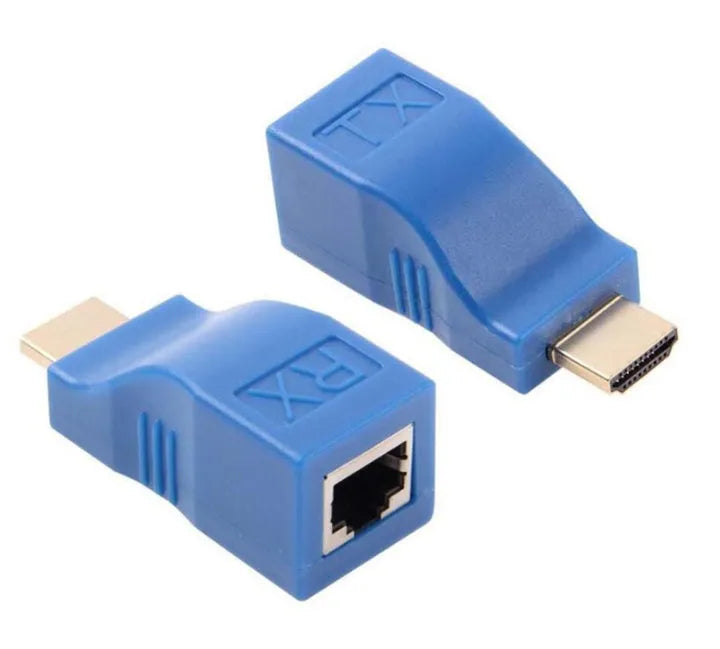

The core functionality of this extender is built around a matched pair of compact units: a transmitter (TX) and a receiver (RX). Their design prioritises simplicity and reliability for stable HD signal transmission over extended distances.

Material and Build

The extender units are housed in compact casings, though their exact construction material is not specified. The critical link is the Cat-5e or Cat-6 copper network cable you supply, which carries the signal between the TX and RX units. This use of standard structured cabling is a key practical advantage, as these cables are often easier to source, route, and terminate over long runs than a bulky HDMI cable. The system adheres to the IEEE-568B wiring standard, ensuring compatibility with most pre-installed network cabling infrastructure.

Size and Practical Fit

Described as having a 'Compact Size', the transmitter and receiver units are intended for discreet placement. This allows them to be tucked behind a media console, mounted near a wall-mounted display, or secured out of sight in an equipment rack. Their small form factor does not obstruct other ports or create cable management issues. The performance specification is clear: using a quality Cat-6 cable, the system supports 1080P video transmission at a signalling rate of 2.5Gbps for the full 30-metre distance.

Uses and Placement

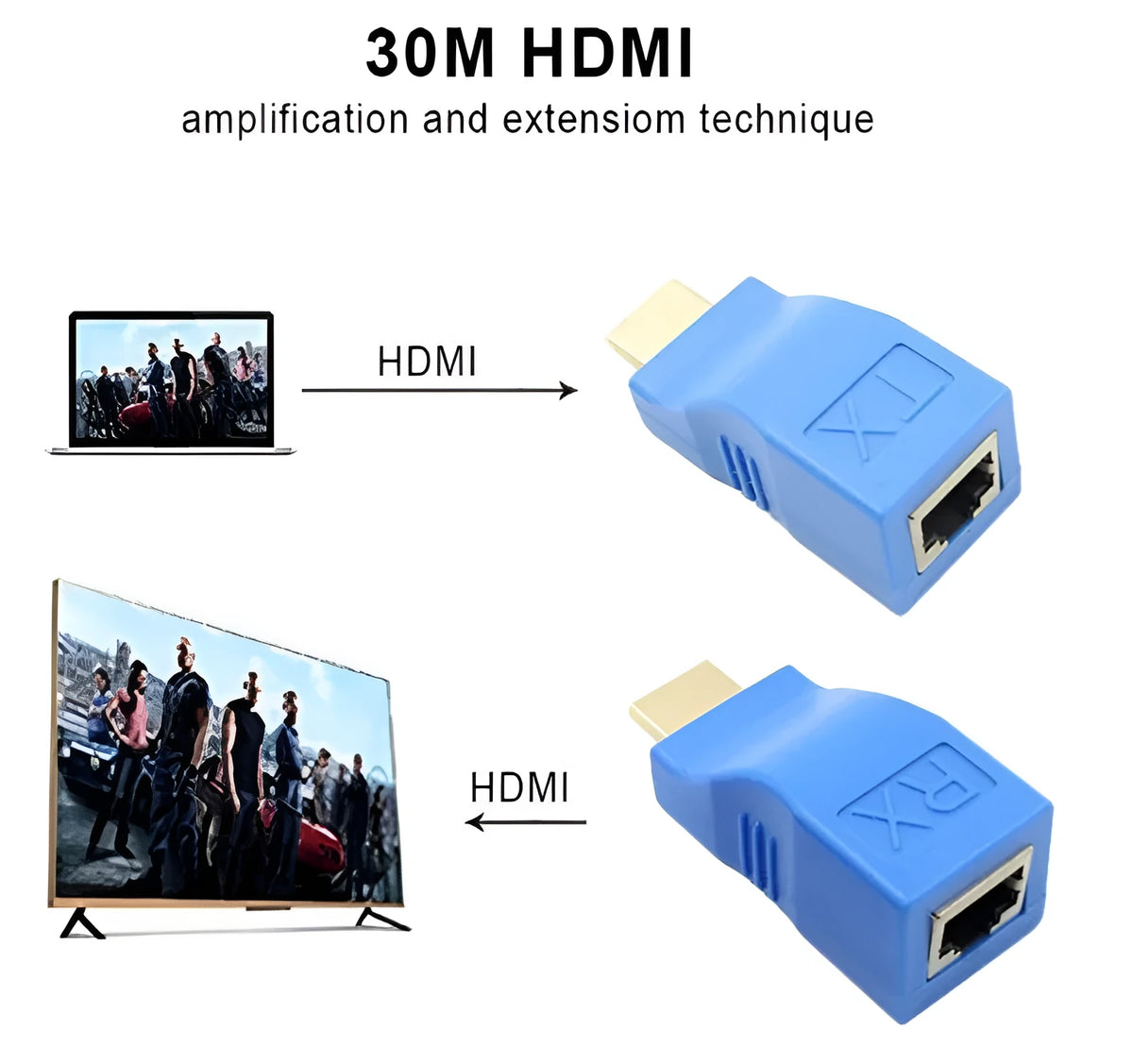

This extender bridges the gap between video sources and displays that are physically separated, enabling clean and professional AV installations in various environments without signal degradation.

Event or Professional Use

In professional settings like conference rooms, lecture halls, or trade show booths, this extender allows a laptop or media player at a podium to connect to a projector or large screen at the front of the room. For digital signage, it can link a media player stored in a secure cabinet to a display mounted high on a wall or in a store window. The HDCP compliance ensures protected commercial content can be displayed without issue, which is essential for licensed media playback.

Everyday Home Use

At home, it solves the common problem of wanting to place a games console, Blu-ray player, or set-top box in a different cabinet or on a different wall from the television. For example, you can keep a PS5 or Sky Q box neatly organised with other AV equipment in one corner of a room while your 4K TV is centred on another wall. The 30-metre range is more than sufficient for most domestic layouts, including open-plan living spaces and dedicated home cinema rooms.

Benefits and Buying Value

The value of this HDMI Extender lies in its specific solution to a defined problem, using established technology to deliver reliable performance without unnecessary complexity or cost.

Reuse and Low Maintenance

A significant benefit is the ability to leverage existing network cable installations. If you have spare Cat-5e/6 lines running through your walls or ceilings, this extender can repurpose them for AV use, saving on new cable costs and installation hassle. Once set up, the system requires no ongoing maintenance or software updates; it is a passive hardware solution that works as long as the physical connections remain secure. The lack of a required external power supply further simplifies the setup and reduces cable clutter and potential points of failure.

Why Choose This Product

This product is a direct choice for anyone needing to reliably extend a 1080P HDMI signal beyond 10-15 metres without investing in expensive active HDMI cables or more complex matrix systems. Its plug-and-play nature means it works straight out of the box—simply connect the provided HDMI leads to your source and display, link the units with a network cable, and the signal is extended. It provides a focused, cost-effective bridge for specific devices like the listed HD-DVD players, PS3 consoles, set-top boxes (STBs), HD-LCD TVs, and DLP projectors, making it a practical tool for both legacy and contemporary HD setups.
