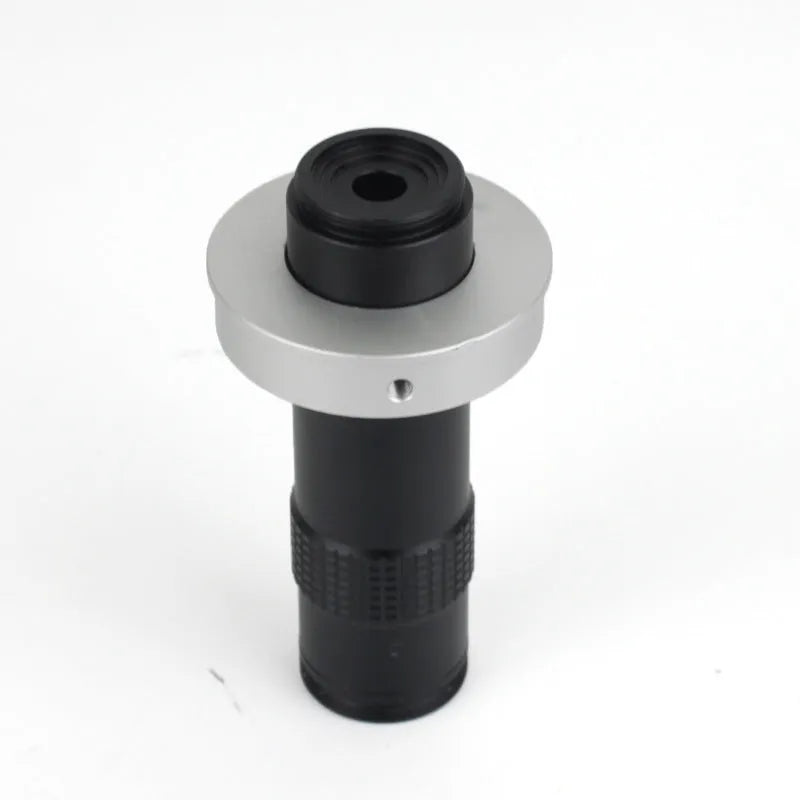

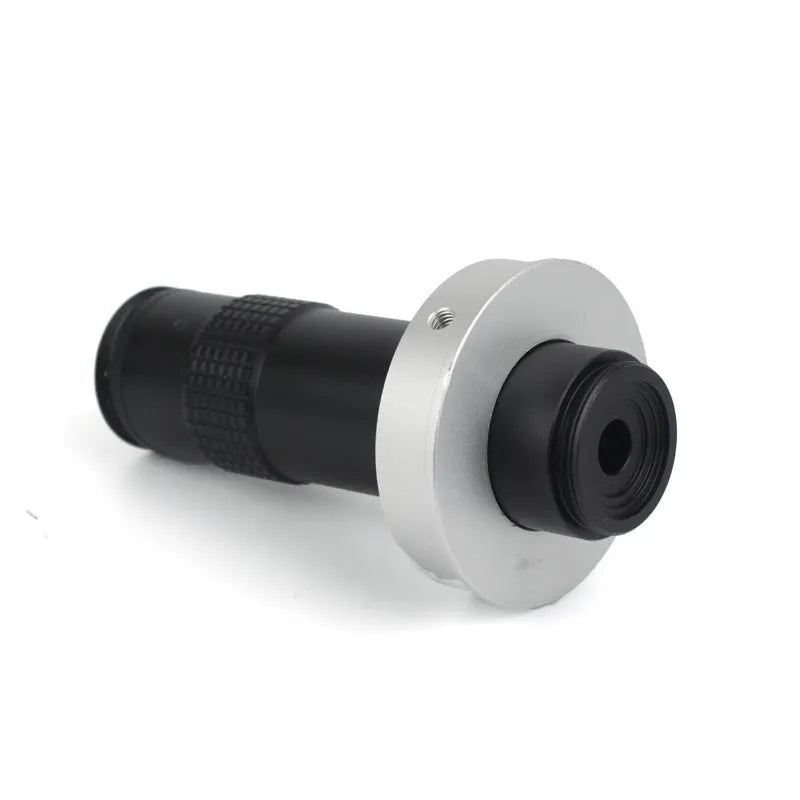

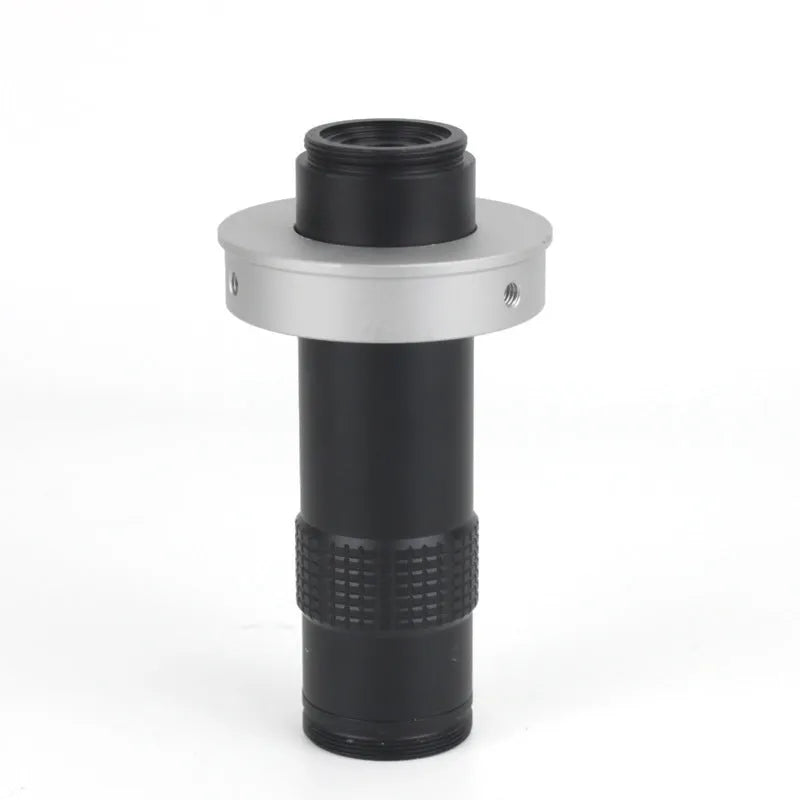

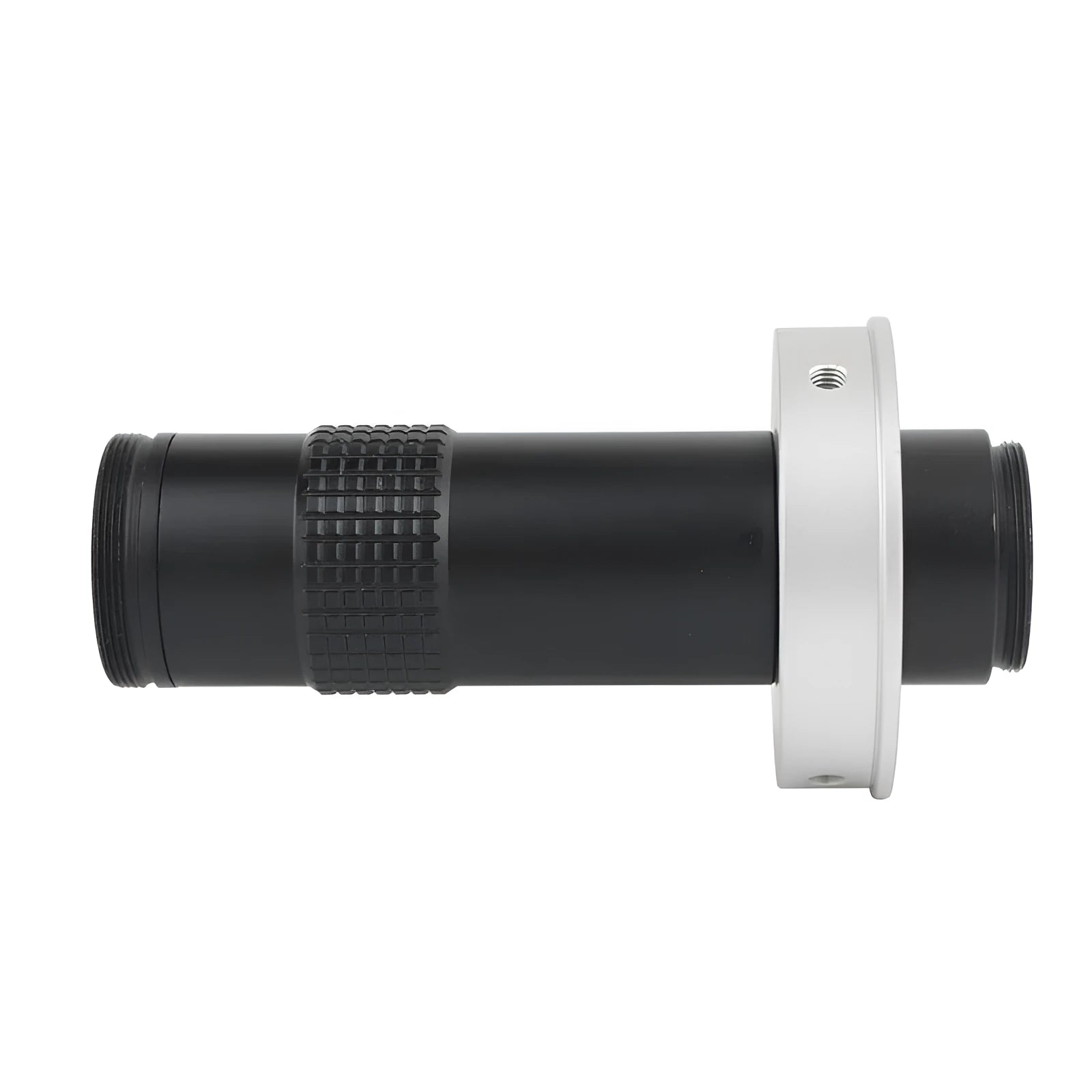

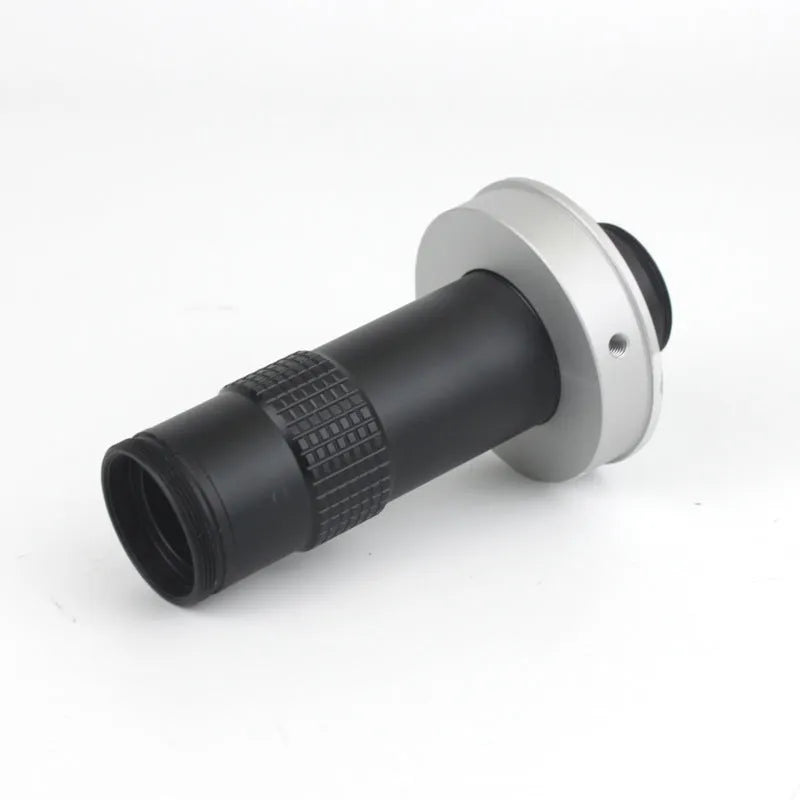

Industrial Camera Monocular Lens with 130x Display Magnification and 60-300mm Working Distance

This industrial camera monocular lens delivers precise optical magnification for detailed inspection and analysis applications. With optical magnification ranging from 0.1X to 1.3X, it provides approximately 10-130x magnification when viewed on a standard display screen, making it suitable for examining small electronic components, mechanical assemblies, and other objects requiring detailed visual analysis. The 60-300mm working distance offers flexibility in positioning without requiring direct contact with inspected items, while the adjustable field of view from 8mm x 4.5mm to 40mm x 33mm accommodates both detailed close-up examination and broader contextual viewing. The compact 30mm diameter by 84mm length design fits standard industrial camera mounts, providing a practical solution for quality control, research, and manufacturing applications.

Features and Construction

This industrial lens combines optical precision with practical design considerations for reliable performance in inspection environments. The optical system maintains a consistent 1:11 scaling ratio across the magnification range, ensuring accurate dimensional representation of inspected objects. The construction prioritises optical clarity while providing physical protection for the internal components through its housing design.

Material and Build

The lens incorporates precision optical glass elements engineered to deliver the specified magnification range and scaling ratio. These elements work together to maintain image clarity and minimise distortion across the working distance range. The black anodised aluminium housing provides structural integrity and protection for the optical components while offering resistance to incidental impacts and environmental factors common in industrial settings. The anodised finish contributes to durability while maintaining the lens's professional appearance.

Size and Practical Fit

With dimensions of 30mm in diameter and 84mm in length, the lens features a compact cylindrical design that integrates with standard industrial camera mounting systems. This size configuration allows for installation on various camera bodies without requiring specialised adapters or modification. The 30mm diameter corresponds to common industrial lens mount standards, facilitating compatibility with existing camera setups. The length provides sufficient internal space for the optical elements while maintaining a manageable profile for different mounting configurations and workspace constraints.

Uses and Placement

The lens serves multiple applications in industrial and technical environments where detailed visual inspection is required. Its combination of magnification range, working distance, and field of view adjustment makes it adaptable to different inspection scenarios, from electronic component analysis to mechanical part examination. The working distance flexibility allows positioning above various object sizes and heights without compromising image quality.

Event or Professional Use

In professional settings, this lens supports quality control processes in manufacturing environments where precise visual inspection is essential. The magnification range from 0.1X to 1.3X enables detailed examination of electronic circuit boards, identifying soldering defects, component placement issues, or trace damage. The adjustable field of view allows inspectors to switch between detailed examination of specific components (using the 8mm x 4.5mm maximum magnification view) and broader assessment of larger assemblies (using the 40mm x 33mm minimum magnification view). The working distance range accommodates different inspection setups, from benchtop configurations to integrated production line systems.

Everyday Home Use

For technical hobbyists or small workshop applications, this lens provides a practical magnification solution for detailed projects. Electronics enthusiasts can use it for inspecting circuit board repairs, analysing component details, or documenting project builds with enhanced visual clarity. Model builders and craftspeople can employ it for examining small mechanical parts, checking assembly alignment, or performing detailed quality checks on finished work. The working distance flexibility allows positioning above various projects without disturbing delicate components, while the magnification range supports both overview assessment and detailed examination as needed.

Benefits and Buying Value

This industrial camera lens offers practical advantages through its combination of optical performance and physical design. The specified parameters work together to provide reliable inspection capability across different applications and environments. The lens's construction prioritises consistent performance while maintaining compatibility with standard industrial camera equipment.

Reuse and Low Maintenance

The lens design supports repeated use across different projects and applications without performance degradation. The precision optical glass elements maintain their specified properties through regular use when handled according to standard optical equipment care guidelines. The anodised aluminium housing provides lasting protection for the internal components, reducing the need for frequent maintenance or adjustment. The standard 30mm mount diameter ensures compatibility with various camera systems, allowing the lens to be transferred between different setups as needed without requiring additional adapters or modification.

Why Choose This Product

This industrial camera lens delivers specified optical performance within defined parameters, providing reliable magnification for inspection and analysis applications. The combination of 0.1-1.3X optical magnification with approximately 10-130x display magnification covers a practical range for detailed examination needs. The 60-300mm working distance offers positioning flexibility above different object sizes and types, while the adjustable field of view accommodates both detailed close-ups and broader contextual views. The compact 30mm x 84mm design integrates with standard industrial camera mounts, and the 1:11 scaling ratio ensures accurate dimensional representation. These specified parameters work together to provide a practical optical solution for quality control, technical analysis, and detailed inspection requirements.
