UTi Series Handheld Infrared Thermal Imager for Industrial Temperature Measurement and Fault Detection

The UTi series of infrared thermal imagers are designed for professionals requiring accurate, non-contact temperature measurement and thermal pattern analysis. With a core operational range spanning from -10 °C to 400 °C, this tool is suited for applications in electrical maintenance, mechanical inspection, and building diagnostics. It combines a 160x120 pixel infrared sensor with a 320x240 pixel display on a 2.8-inch TFT screen, providing a clear visualisation of temperature gradients for identifying potential faults, energy inefficiencies, or abnormal heat signatures in equipment and structures.

Features and Construction

The imager's construction and feature set are geared towards practical, on-site use. Its design incorporates elements for data capture, user interaction, and environmental resilience, providing a self-contained diagnostic tool.

Material and Build

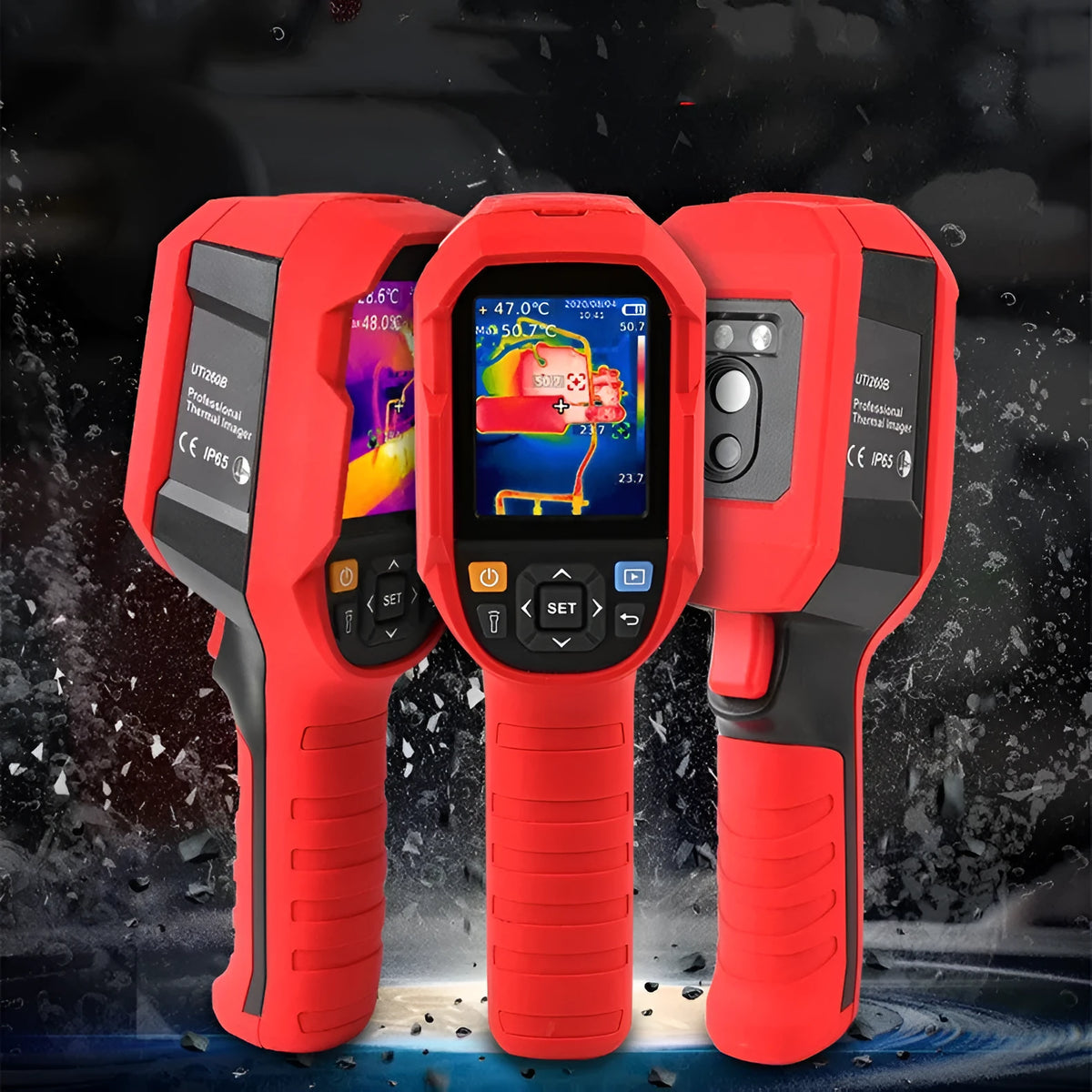

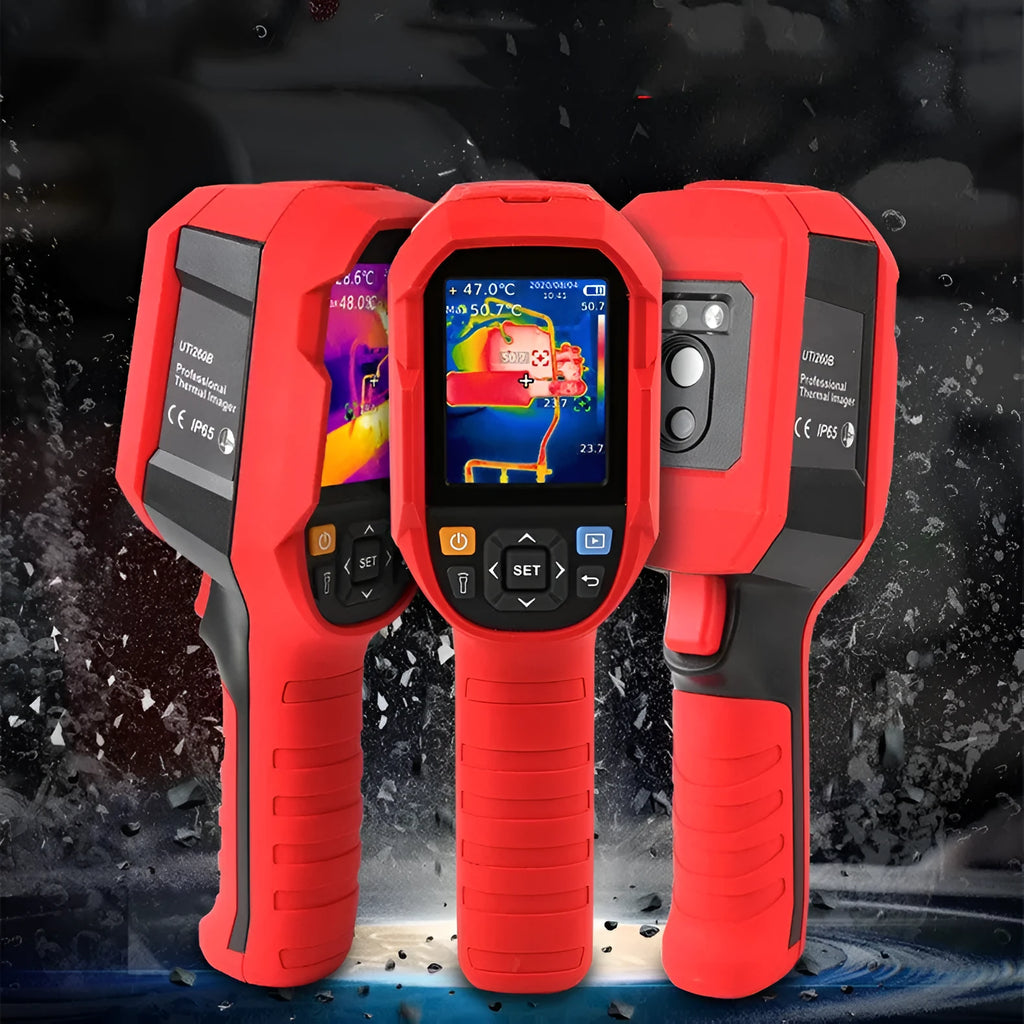

The device housing is built to an IP65 rating, meaning it is dust-tight and protected against low-pressure water jets from any direction. This level of ingress protection, coupled with a stated 2-metre drop resistance, indicates a ruggedised construction intended to withstand the demands of fieldwork in industrial or outdoor settings. The inclusion of a cloth bag in the package offers basic storage and transport protection.

Size and Practical Fit

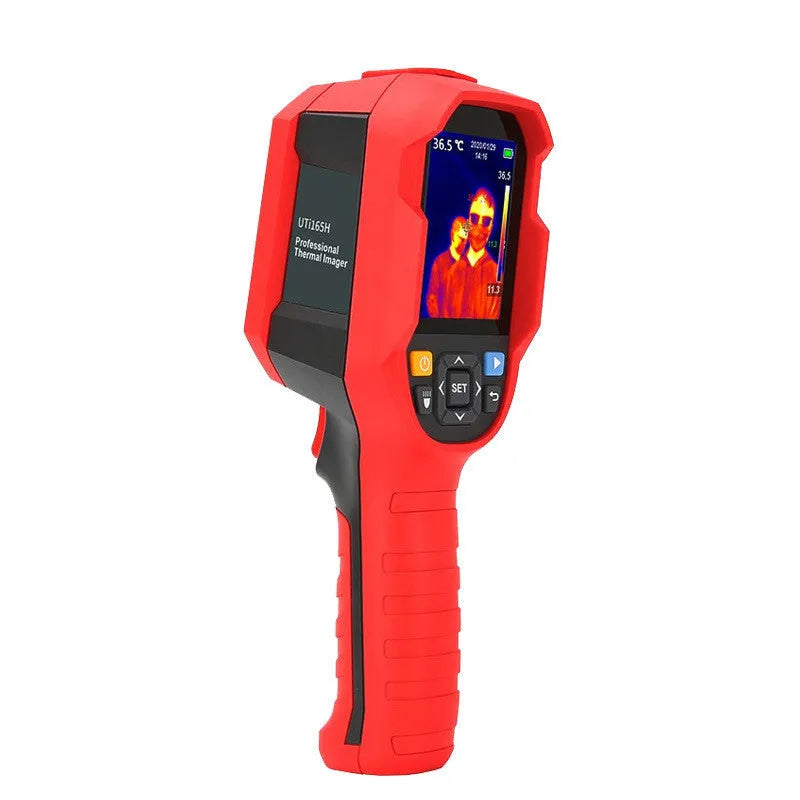

The thermal imager has compact dimensions of 236 mm by 75.5 mm by 86 mm, making it a handheld device. A standard 1/4-inch tripod mounting hole is integrated into the body, allowing for stable mounting on a tripod for extended monitoring or detailed inspection without operator fatigue. The 2.8-inch TFT screen provides a viewing area for the thermal imagery and data overlays during use.

Uses and Placement

The specifications of the UTi imager direct its utility towards technical and diagnostic scenarios where quantifying surface temperature is critical for safety, efficiency, or preventive maintenance.

Event or Professional Use

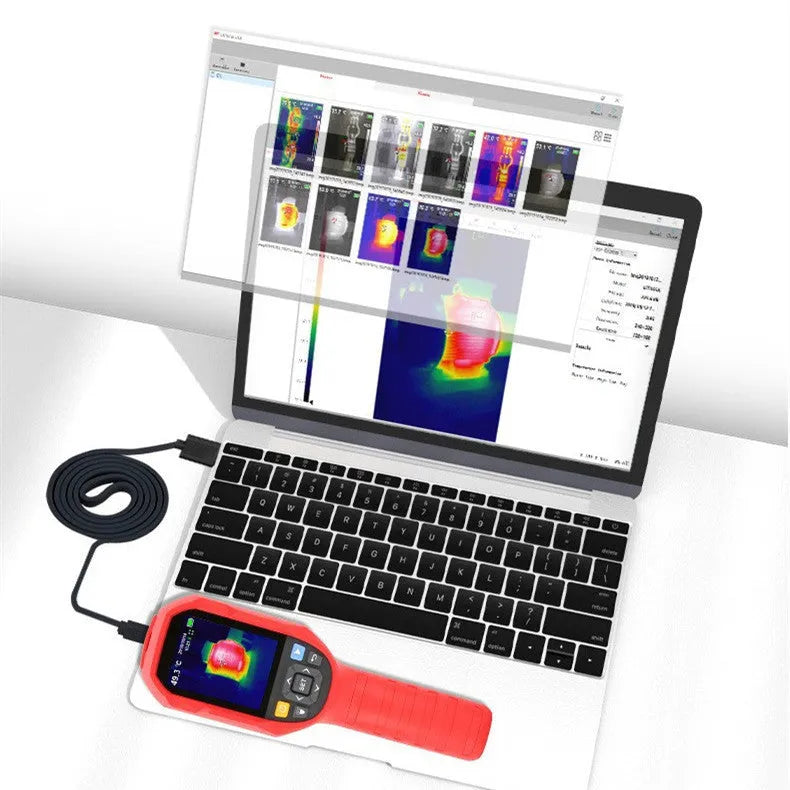

This thermal imager supports professional diagnostic workflows. The fast high-temperature tracking function can help identify transient or rapidly changing thermal events. The ability to take photos and store them directly onto the included 8GB mini TF (SD) card facilitates evidence gathering, reporting, and post-inspection analysis. The accompanying PC analysis software allows for deeper data examination and report generation away from the inspection site.

Everyday Home Use

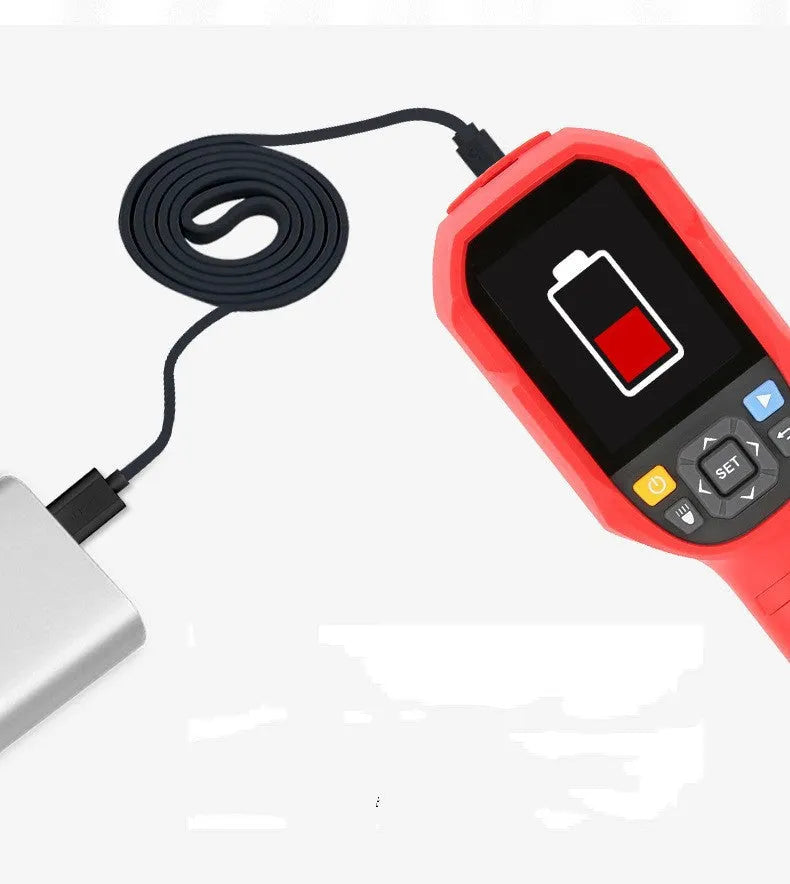

While primarily an industrial tool, the thermal imager's capabilities can be applied to domestic energy audits, such as detecting heat loss around windows and doors, checking underfloor heating distribution, or identifying hot spots in consumer electrical units. The USB interface simplifies charging the integrated lithium battery from common power sources.

Benefits and Buying Value

The value of the UTi thermal imager lies in its specific combination of measurement range, ruggedness, and data capture features, which together support informed decision-making in technical fields.

Reuse and Low Maintenance

The device is designed for repeated use across multiple projects. The rechargeable lithium battery and standard USB charging reduce ongoing power costs. The robust IP65 and 2-metre drop-rated housing minimises the risk of damage from typical on-site hazards, promoting tool longevity. The SD card storage allows for archiving thousands of thermal images for future reference or comparison.

Why Choose This Product

This thermal imager offers a defined set of specifications for professionals who need a reliable field instrument. Its -10°C to 400°C range covers many common industrial scenarios, from checking electrical connections to monitoring mechanical bearing temperatures. The ±2% measurement accuracy provides a quantifiable level of confidence in the readings. The combination of image storage, PC software, and a tripod mount creates a functional system for thorough thermal investigation, rather than just a spot-check device.
