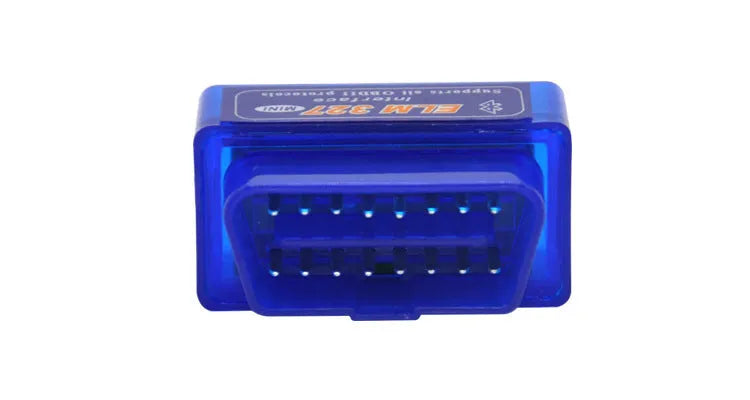

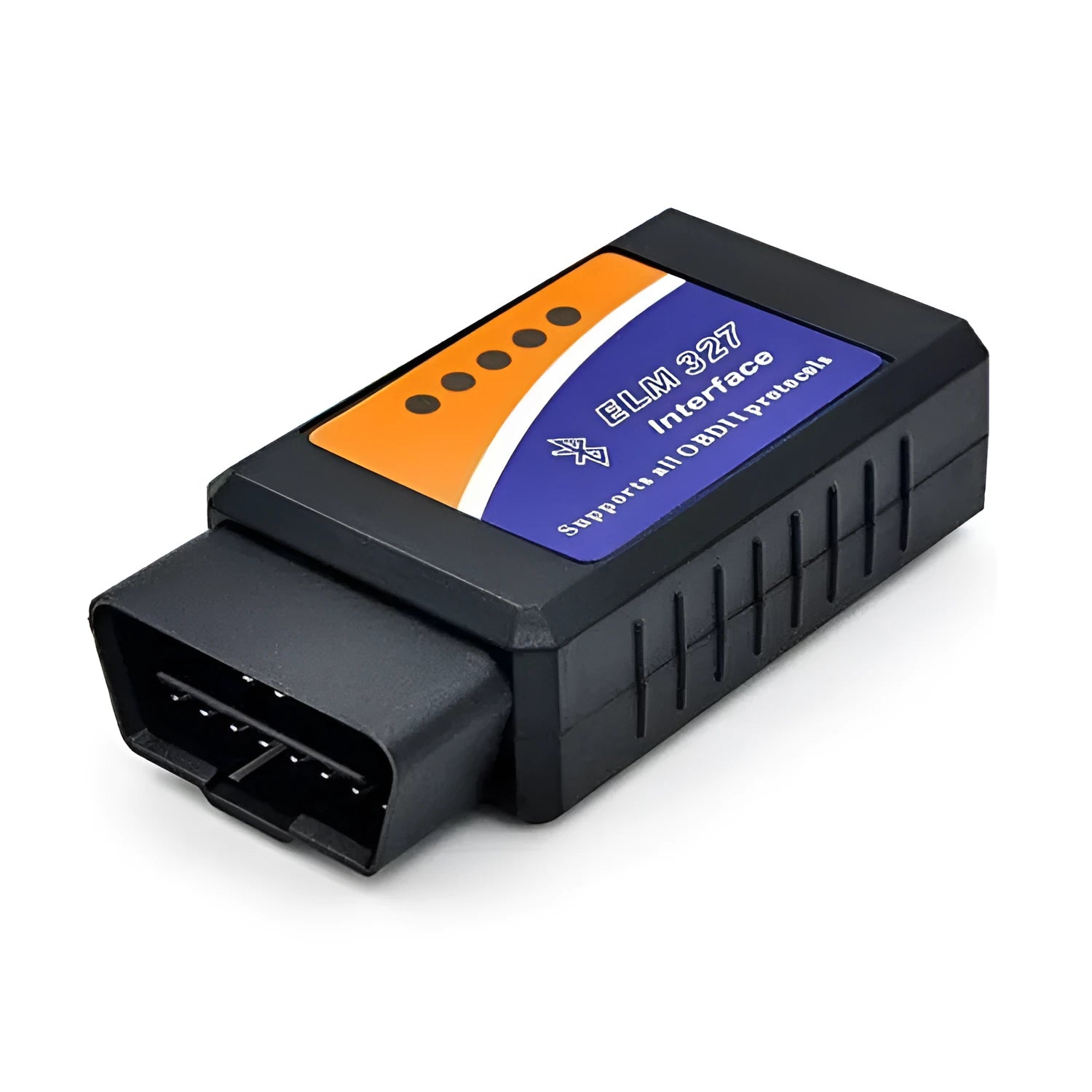

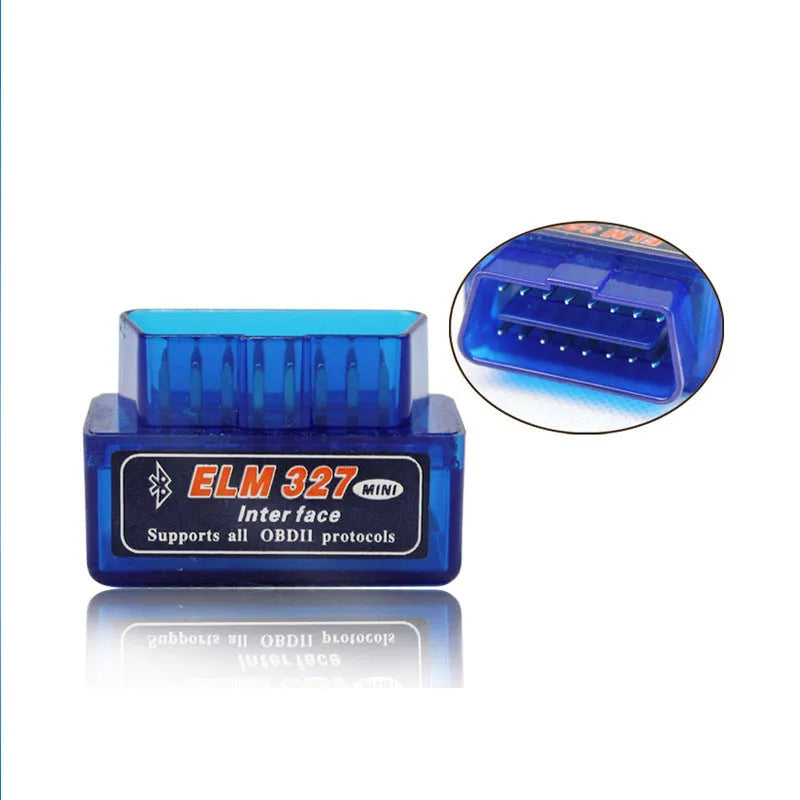

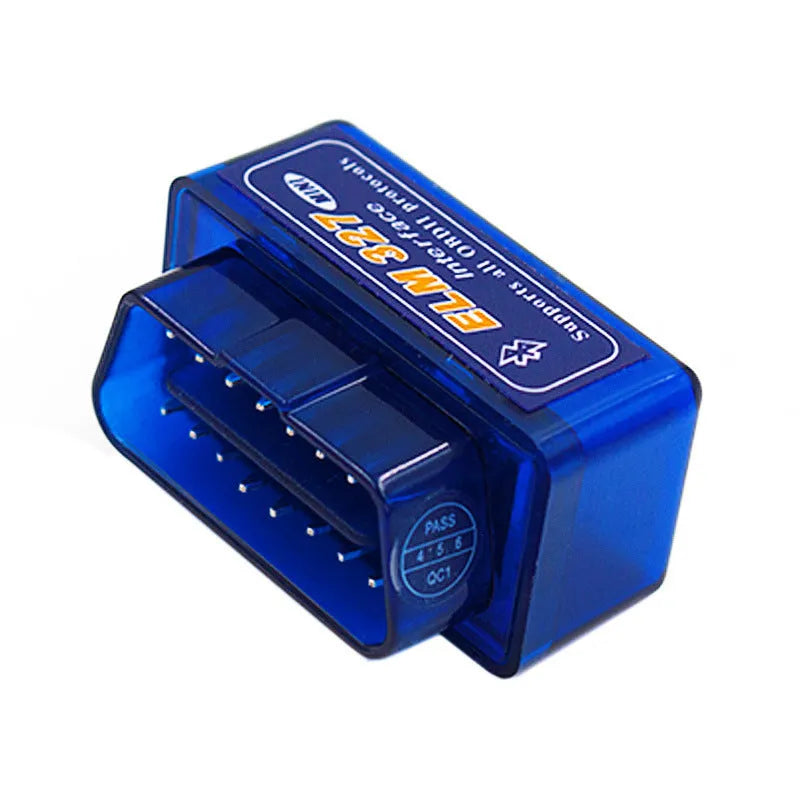

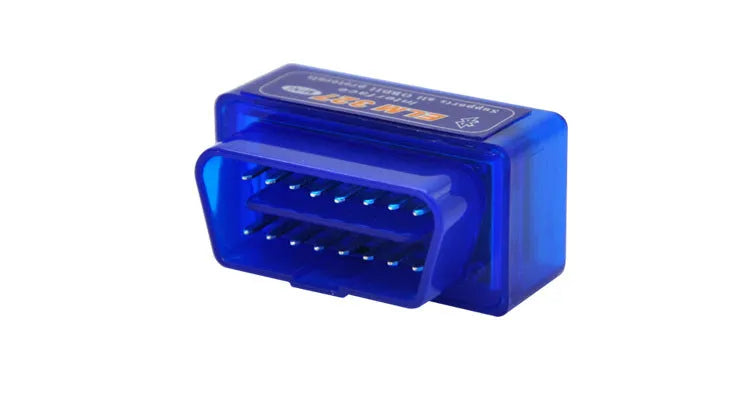

Mini OBD2 Bluetooth Scanner: Read Fault Codes and Monitor Real-Time Sensor Data

This compact 45mm x 25mm x 65mm OBD2 Bluetooth scanner offers a direct line to your vehicle's diagnostics. By plugging into the standard OBD2 port found in most cars produced from 1996 onwards, it bridges the gap between your car's onboard computer and your smartphone or laptop. It provides the core functions professional mechanics use—reading and clearing fault codes—directly into your hands. Using Bluetooth connectivity powered by the common ELM327 chipset, it removes the need for cables and allows you to monitor vital engine parameters in real time, turning your compatible device into a capable diagnostic tool for basic maintenance and troubleshooting.

Features and Construction

This diagnostic tool is built around delivering specific, actionable data to the user. Its primary value lies in interpreting the complex language of your car's ECU (Engine Control Unit) and presenting it clearly.

Material and Build

The scanner features a plastic housing that encases the electronic circuitry, including the ELM327 chip responsible for protocol communication. This construction is designed for the automotive environment, with an operating temperature tolerance from -40℃ to 85℃ and operation at humidity levels under 60%. It draws a modest 35mA working current from the vehicle's 9v-16v supply, ensuring it doesn't drain the battery during use.

Size and Practical Fit

With dimensions of 45mm in length, 25mm in width, and 65mm in height, the scanner is notably compact. This small form factor means it can be left plugged into the OBD2 port without obstructing the driver's footwell in most vehicles, and it is easy to store in a glove compartment. Its compatibility hinges on the widespread OBD2 standard and Bluetooth, not on physical adapters, making it a universal fit for supported vehicles.

Uses and Placement

The scanner transforms a smartphone or computer into a diagnostic interface. It is suited for several practical scenarios, from pre-purchase vehicle inspections to ongoing maintenance monitoring.

Event or Professional Use

For individuals assessing a used car, this tool allows a quick check for stored or pending fault codes that might indicate underlying problems before purchase. Hobbyists or semi-professionals performing their own maintenance can use it to confirm a repair was successful by clearing a code and verifying it does not return, or to monitor sensor data like coolant temperature or fuel trims while tuning or testing.

Everyday Home Use

For the typical driver, its most common use is diagnosing the cause of an illuminated 'check engine' light. The ability to read the specific code and its definition from the database of over 3000 generic codes provides immediate guidance on the issue's severity—whether it's a loose fuel cap or a more serious sensor failure—potentially saving an unnecessary garage trip. It also allows periodic checks of basic sensor health.

Benefits and Buying Value

The value of this tool is defined by the access it provides to information otherwise locked within the vehicle's ECU, offering clarity and potential cost savings.

Reuse and Low Maintenance

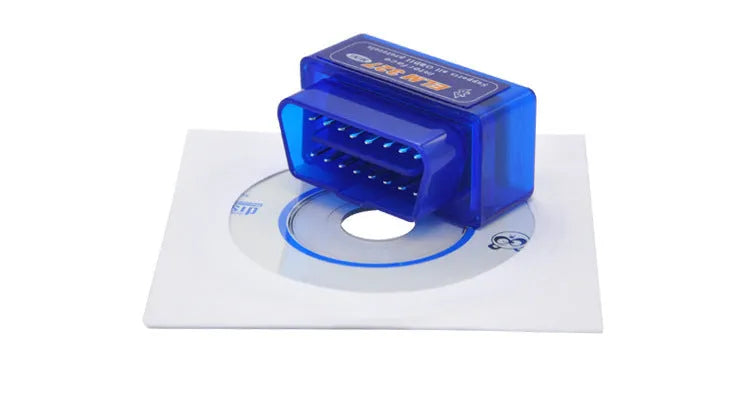

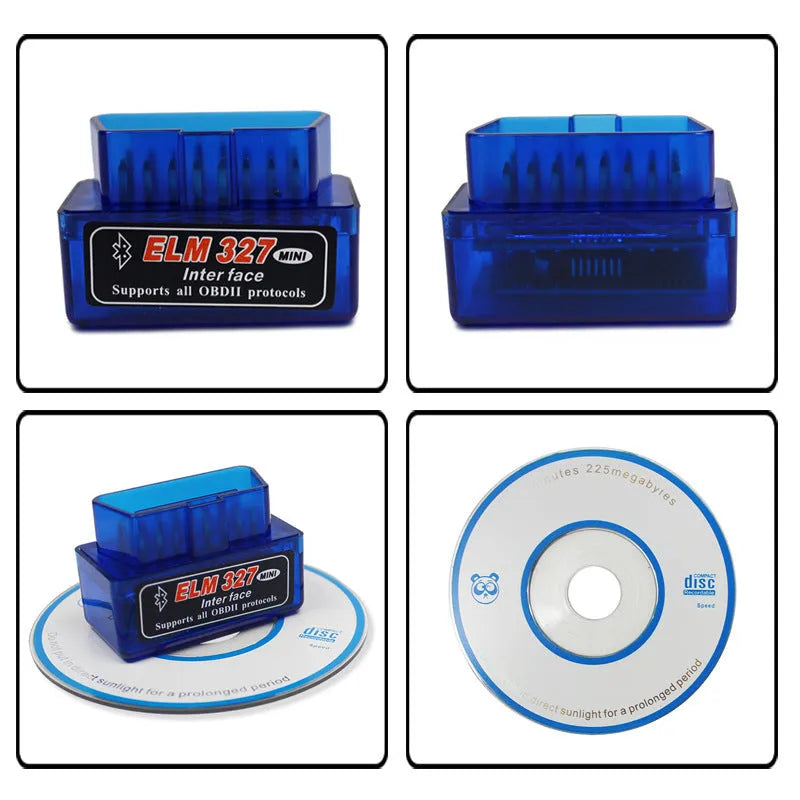

The scanner requires no ongoing maintenance or consumables. It is a reusable digital tool that works with any compatible vehicle you own or may own in the future, assuming they have an OBD2 port and Bluetooth-compatible software is available. The included CD contains software, but many users will download updated or alternative applications directly from official app stores for their platform.

Why Choose This Product

This product provides a specific set of verified functions: reading/clearing codes and displaying live sensor data. Its key differentiators are its compact size, its compatibility with a wide range of software (Torque, DashCommand, ScanMaster-ELM) across multiple platforms (iOS, Android, Windows, Symbian), and its support for over 3000 pre-loaded generic code definitions. It is a functional tool focused on delivering these core diagnostics without unnecessary complexity.
